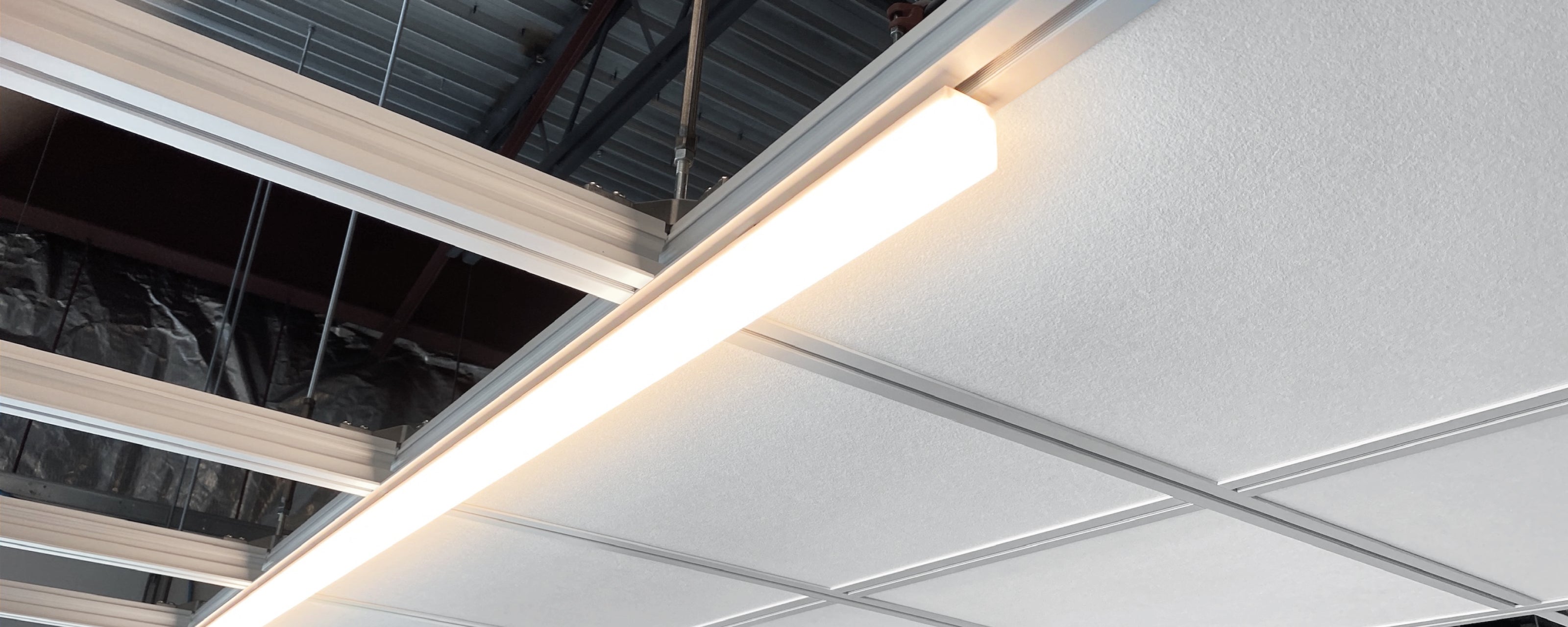

How to measure the thickness of a ceiling tile and width of ceiling grid

When installing a drop ceiling or replacing ceiling tiles, one of the most important measurements to get right is the thickness of the ceiling tile and the width of the grid that supports it. Thickness affects not only how the tiles fit into the grid but also the acoustics, insulation, and overall appearance of the space. Here’s how you can accurately measure the thickness of both materials.

Step 1: Understand ceiling tile dimensions

Ceiling tiles come in various sizes, typically represented as Length x Width x Thickness. For example, a common tile might be labeled as 12" x 12" x 1/2", where the first two numbers indicate the surface area and the third number is the thickness. You can find this information on the product specifications, but it’s always a good idea to measure for accuracy, especially if you're replacing tiles.

Why thickness matters

• Sound absorption: Thicker tiles often provide better sound absorption, contributing to a quieter environment.

• Fit and finish: Ensuring the thickness matches the grid system is crucial for achieving a seamless, professional look.

Step 2: Measuring the grid system

The grid system that supports ceiling tiles is equally important in determining how tiles fit. Standard grids come in 9/16-inch or 15/16-inch widths and you'll want the edge profile of your tile to match that to sit comfortably within the channels. Ensure the size of your grid by measuring the width.

• The grid's width is the visible portion when the tile is in place.

• Kanopi by Armstrong will always recommend the appropriate grid for the tile you choose.

Step 3: Checking compatibility

When selecting ceiling tiles, always cross-reference the tile thickness with the grid specifications to ensure a snug, proper fit. Mismatched tiles and grids can lead to unsightly gaps, poor acoustics, or even tile sagging over time.

We hope this helps in your ceiling project planning, for more on how to install your ceiling visit this Kanopi by Armstrong How-To Guide.
